압출 가공 Grades
제품 개요
| 제품명 | 분자량(g/mol) | 형태 | 포장 |
|---|---|---|---|
| GUR5523 | 6,700,000 | Granule | 25kg/bag |
Specification
| Density | g/cm3 | 0.93 |
|---|---|---|
| Average molecular weight (Calculated from IV using Margolies´equation) |
g/mol | 6,700,000 |
| Bulk density | g/cm3 | 0.45 ± 0.05 |
| Impact strength(Double notched) ISO 11542 – 2 |
kJ/m2 | > 150 |
| Tensile strength | MPa | > 17 |
| Abrasion(Sand slurry) | relative | 100 - 120 |
제품용도
- Market for UHMWPE Pipes
- Slurry transportation of abrasive material
- Steel mills, mining-industry, sand-transportation (construction, marine)
- Mostly replacement of steel pipes
Processing Recommendation(Screw Extrusion)
- Single screw extruder
- L/D ratio > 20
- Compression ratio of screw must not be too high
- (less than 2,5: 1; better would be smaller, e.g. 1,5 or even down to 1)
- Temperatures need to be adjusted to the actual process conditions and should not be too high, e.g.:
- feed zone 150 deg.,
- along the barrel not much more than 200 deg C,
- down to 160 to 180 deg C at the die
- Enable smooth and easy flow of the resin in the extruder to the die (avoid devices like screens etc.)

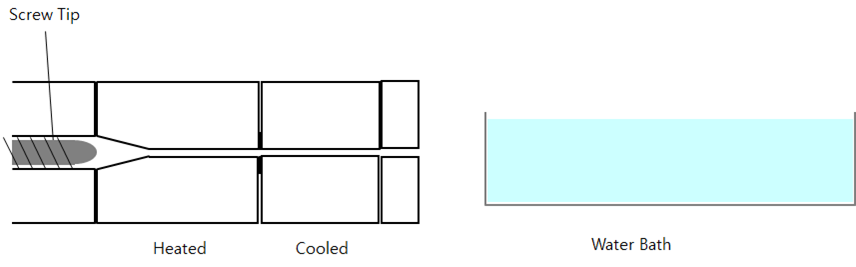

Processing Tool
